Precision Medical Coil Winders

Types include: Mandrel Winders, Mandrel Coilers, Continuous Winders, Respoolers

Photo Index

Model 105DC
 Direct Coiling on Liner Covered Mandrel


Model 105P-8 filar
High Production Medical Coil Winder - Fully Automatic Version



Model 105DS
Stacked Dual Spindle Medical Coil Winder


Model 105L-8 filar
Precision Variable Pitch Medical Coil Winder - Laboratory Version


Model 105-3 Multi Axis
Special Multi Axis Medical Coil Winder - for Nitinol Shaping


Model 101 Micro Coil Winder
For winding medical imaging coils with wire as fine as 58AWG




Model 105
Precision Medical Mandrel Winder		   Model 105P
Long Bed Precision Medical Mandrel Winder






Model 105DL
Dual Spindle - Fully Automatic
Long Bed - Precision Medical Mandrel Winder		   Model 105L-8
Eight Filar - Open Loop Tension
Long Bed Precision Medical Mandrel Winder

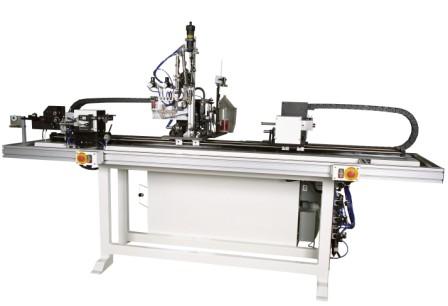

Model 107
Medical RF Antenna Winder		   Model 105B
Benchtop Mandrel Winding Machine with Closed Loop Pay Off Tensioner



Model 106

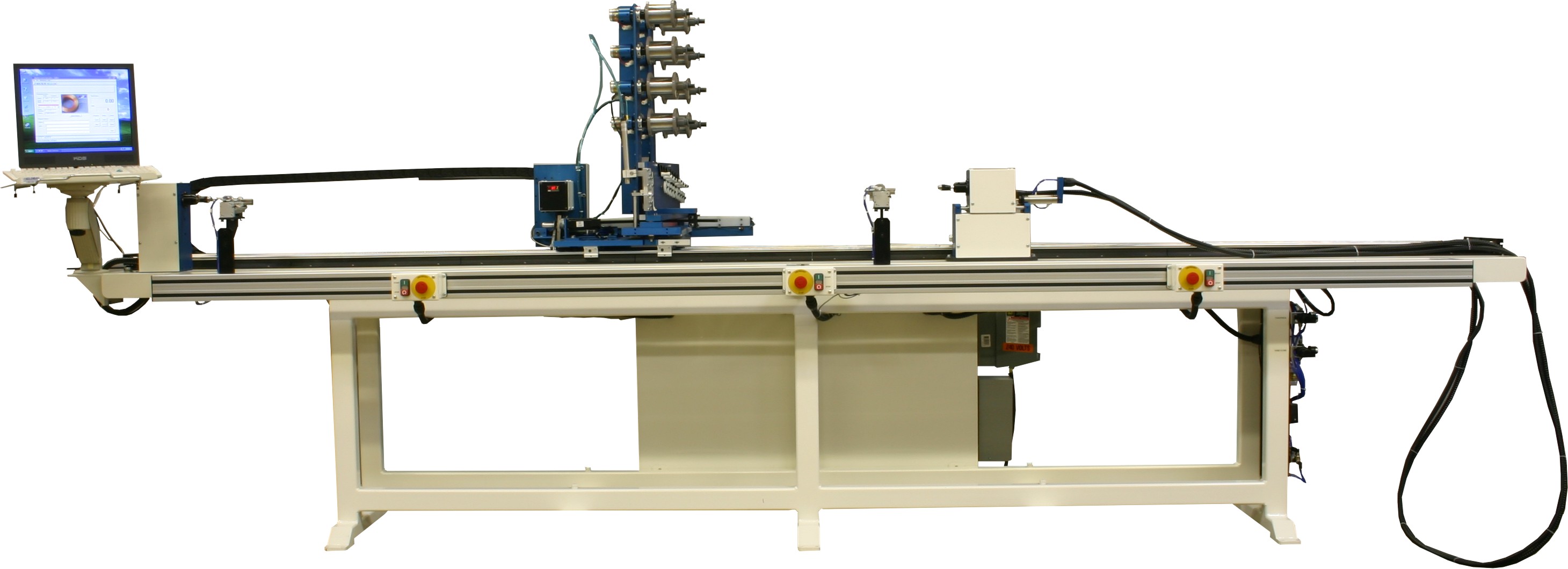

Mandrel Coiling Machine		   Model 105-8
Eight Filar - Closed Loop Tension
with bi-directional angle control


Model 130
Multi-filar Continuous Coil Winder with cut-to-length and respooling



Machine Control Specialists, Inc.
 35 N Garden Avenue
 Roselle, IL 60172-1742
 Voice: 630-980-3200   Fax: 630-980-3249
 Web: www.mcsinc.com Email: info@mcsinc.com

Last Update: July 19, 2017
