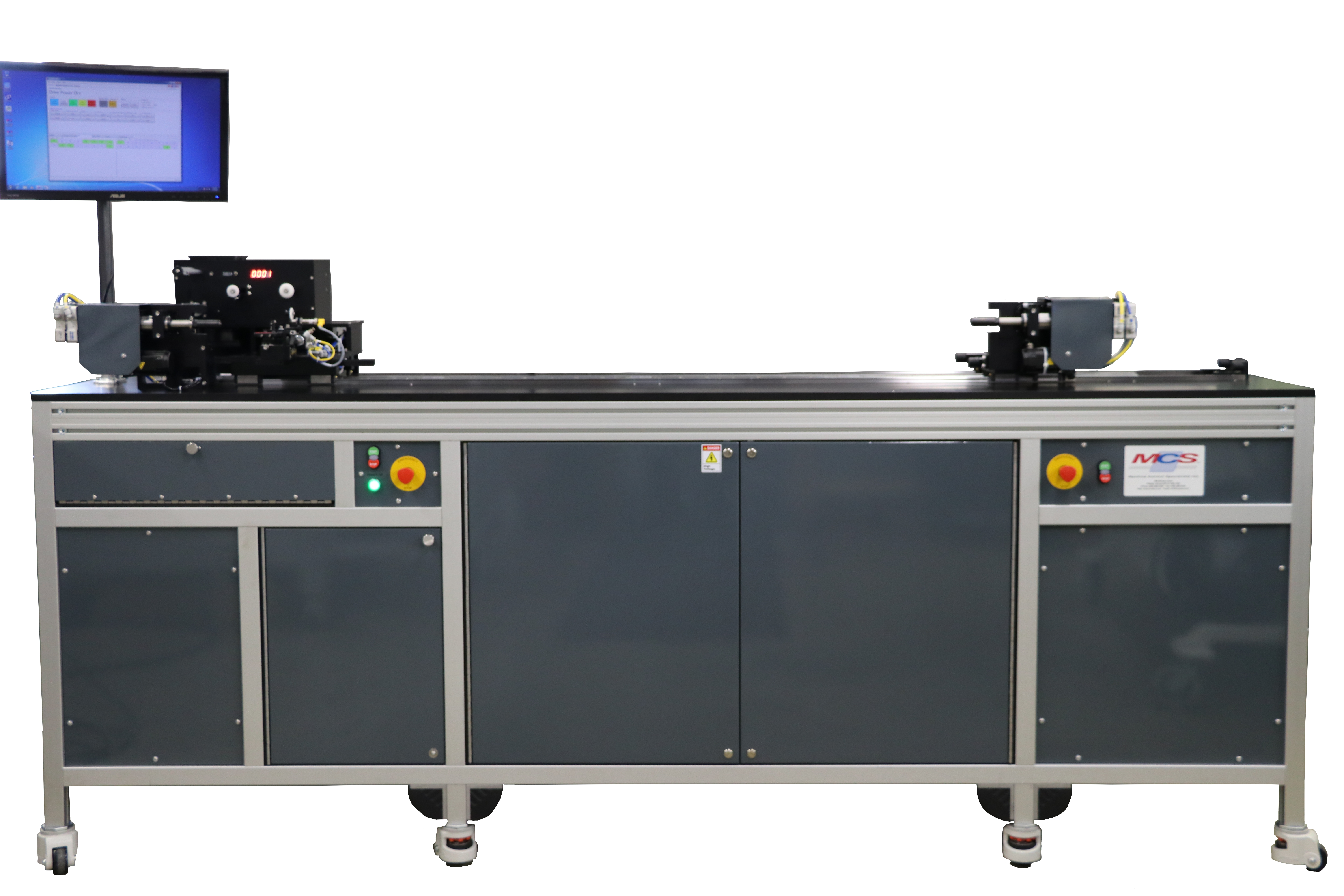

Model 105L Precision Medical Coil Winder - Laboratory Version


The new Model 105L is built on a lighter & smaller frame to easily move into tight quarters in a lab or low production area. The machine retains all of the control performance of the heavier Model 105P machine but limits the amount of fully automatic production features. This new machine has high speed spindles up to 10,000 RPM. A brushless linear servomotor is used to silently drive the traverse. Non-contact lead-lag wire sensing is used to control stiffness in coils. Coated wire is easily wound without damage while maintaining stiffness.

This model has been added to our line of specially designed machines capable of "mandrel" winding catheters, guidewires and other precision medical coils. Typical coils have .001-.025 inch (.025-.630mm) diameter medical grade stainless steel wire wound over an .001-.188 inch (.025-4.75mm) diameter mandrel. The machines rotate a long mandrel wire between two synchronized spindles while a special nozzle guides the wire. A programmable closed loop tensioner is used to precisely control winding tension. Pitch is calculated to .000001 inch (.0001mm) accuracy and can be changed in .01 revolution of the mandrel. The machine is available from 24 to 144 inch (609 to 3657mm) in manual or fully automatic versions.

See also the short version Model 105 it is available in 12, 24, 36 inch (300, 600, 900mm) versions.

Call today  for more information, literature and pricing.
