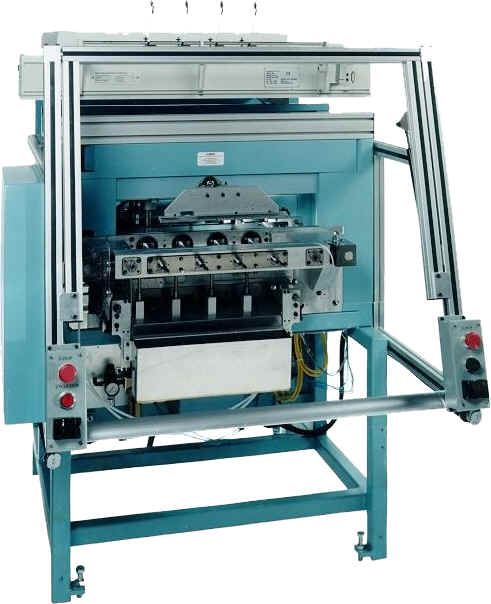

Model 230


*Similar machines are in stock and available for sale, call our sales department for details.

Machine Specifications


Model 230


4 on 3" Centers

Servo Spindle Motor Power:

50 lb/in @ 4000 RPM ~ 3.2 HP Brushed

Spindle Speed:

0 ~ 12,000 with 1:1 ratio

Motor/Spindle Pulley Ratio:

1:1, 2:1, 3:1 with optional pulleys

Spindle positioning:

.45 degree ~ 800 Counts per Rev

Pitch Resolution:

.000001" (.0001 mm)

Axis Speed:

300 in/minute (127mm/second)

Max Rotation Diameter:

3.00" (228mm)

Wire Size Range:

~18ga to finest (based on pulleys)

Tailstock quill tooling:

60 degree live center

Axis Travel:

X-4.5" (216mm) Y-2.5 (100mm) Z-2.0 (51mm)

Axis Position Resolution:

.001" (.025mm)

Spindle Brake:

DC Electromagnetic (Programmable)


Automatic w/ safety interlock

Guard System:

Automatic w/ safety interlock


D-50" (.9M) W-60" (1.2M) H-56" (1.4M)


~1200 # (363Kg)




Model MCS6

Control Type:

PC Based with MCS6 Motion Control & Intelligent I/O


19 inch LCD monitor - Touch Screen (optional)


Standard PC Keyboard, Mouse or Track ball

Program Storage:

Minimum 250GB hard disk drive

I/O Points:

16 in / 16 out (24 VDC)

Operation System:

Microsoft Windows 7

Programming Software:

MCS CoilPro with Multi-Media capability


Optional Ethernet




Foot Pedal Control:

Variable Speed w/On-Off Switch

Wire Guide Assembly:

Eyelet, Pulley or Optional “Electro Guide”

Dereeler Ports:

1 to 8 for Hysteresis Brake w/Tension Switch

Additional I/O Points:

8 in / 8 out (24 VDC)

Wire Tensioning:

Friction or Programmable Hysteresis Brake
