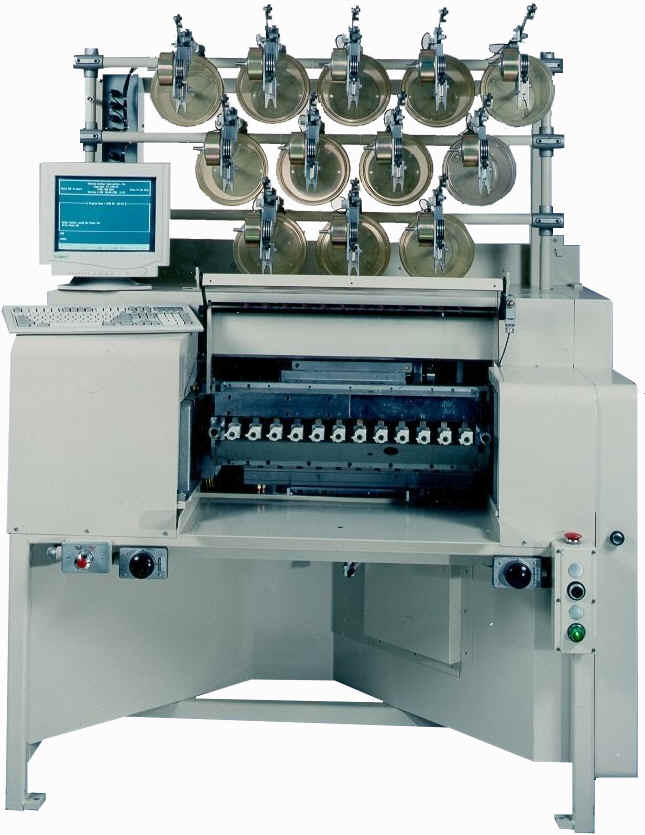

MACHINE

Model 160

Spindles:

12 on 2" Centers / 8 on 3" Centers

Servo Spindle Motor Power:

50 lb/in @ 4000 RPM ~ 3.2 HP Brushed

Spindle Speed:

0 ~ 6,000 with 3:1 ratio

Motor/Spindle Pulley Ratio:

1:1, 2:1, 3:1 with optional pulleys

Spindle positioning:

Pitch Resolution:

.000001" (.0001 mm)

Axis Speed:

300 in/minute (127mm/second)

Max Rotation Diameter:

2.00" (228mm)

Wire Size Range:

~16ga to finest (based on pulleys)

Axis Travel:

X-4.5" (216mm) Y-2.5 (100mm) Z-2.0 (51mm)

Axis Position Resolution:

.001" (.025mm)

Spindle Brake:

DC Electromagnetic (Programmable)

Tailstock:

Guard System:

Automatic w/ safety interlock

Dimensions:

D-50" (.9M) W-60" (1.2M) H-56" (1.4M)

Weight:

~2000# (363 Kg)

CONTROL

Model MCS6

Control Type:

PC Based with MCS6 Motion Control & Intelligent I/O

Display:

19 inch LCD monitor - Touch Screen (optional)

Input:

Standard PC Keyboard, Mouse or Track ball

Program Storage:

Minimum 250GB hard disk drive

I/O Points:

16 in / 16 out (24 VDC)

Operation System:

Microsoft Windows 7

Programming Software:

MCS CoilPro with Multi-Media capability

Network:

Optional Ethernet

OPTIONS

Wire Guide Assembly:

Eyelet, Pulley or Optional “Electro Guide" Vertical, Horizontal, Cutters

Dereeler Ports:

8 or 12 for Hysteresis Brake w/Tension Switch

Additional I/O Points:

8 in / 8 out (24 VDC)

Wire Tensioning:

Friction or Programmable Hysteresis Brake
