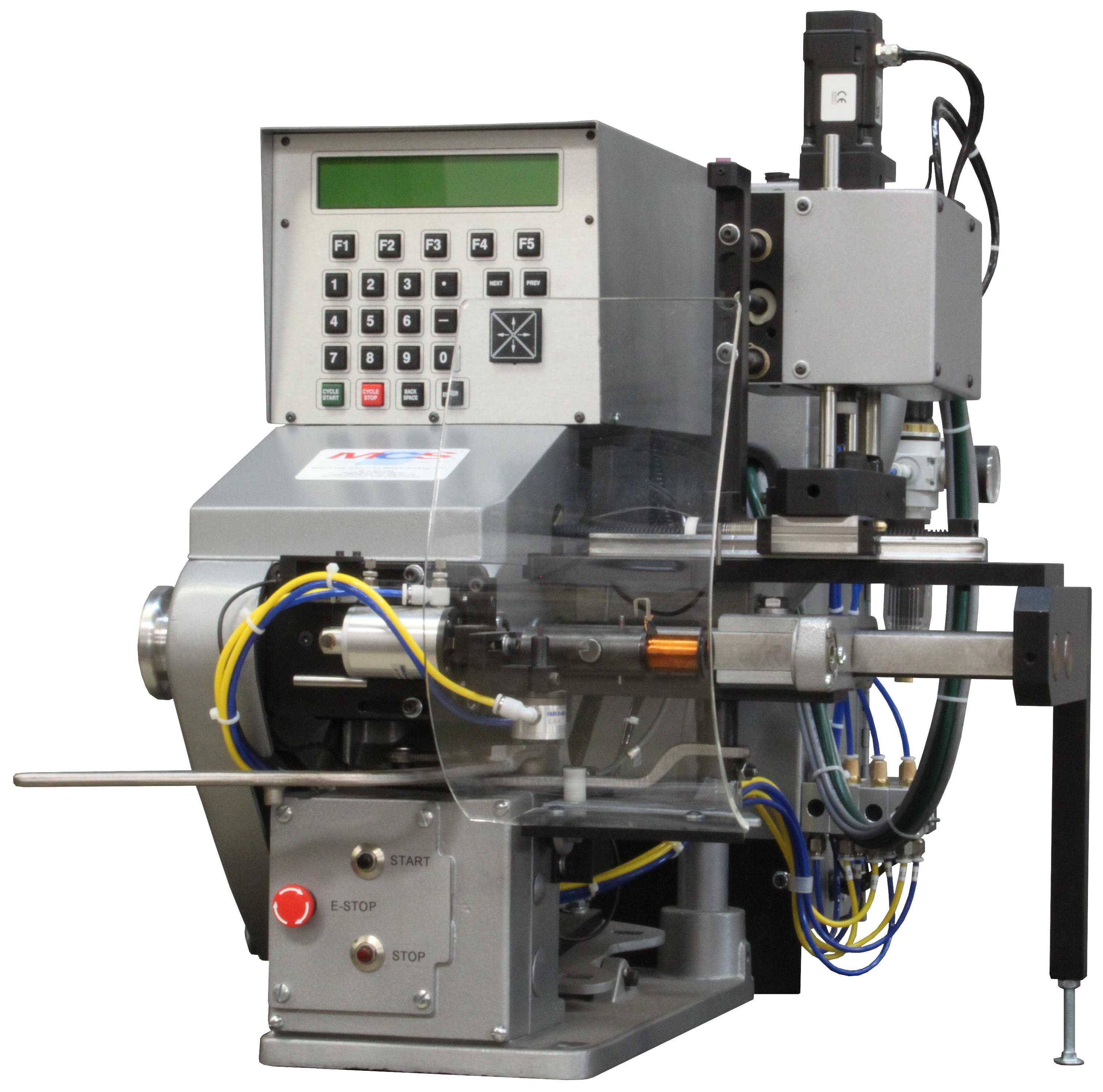

Model 115-3 Multi Axis Benchtop Coil Winder
with MCS2 Control and 3 axis servo upgrade
Click here for Model 115 Single Axis
|
MACHINE |
|||
|
Model 115-3 |
|||
|
Wire size: |
50
to 16 AWG |
||
|
Maximum coil
diameter: |
3.75" (95mm) standard - 4.25” (108mm) optional | ||
|
Spindle height: |
6
5/8 inches / 168 mm |
||
|
Standard
Spindle motor: |
3500
RPM, 1/2HP, 9 in/lb Brushed Servomotor |
||
|
Optional
Spindle motor: |
1750
RPM, 1/2HP, 18 in/lb Brushed Servomotor |
||
|
Spindle
drive: |
PWM Servo amplifier | ||
|
Spindle
shaft: |
1/2 inch with flat | ||
|
Standard
ratios (belt & pulley): |
4:1, 3:1, 2:1, 1:1, 1:2, 1:3, 1:4 | ||
|
Spindle
speeds: |
RPM | Ratio | Torque |
| 14000 | 4:1 | 2.25
lb/in, .187 lb/ft |
|
| 3500 | 1:1 | 9
lb/in, .75 lb/ft |
|
| 875 | 1:4 | 36 lb/in, 3 lb/ft | |
| Spindle positioning: | .225 degree ~ 1600 Counts per Rev | ||
| Traverse
drive: |
20
oz/in, 7500 RPM brushless servomotor |
||
| Pitch Resolution: | .000001" (.0001 mm) | ||
| X-Y-Z Axis Speed: | 300 in/minute (127 mm/second) | ||
| X Axis Travel (standard): | 2.375" (60mm) short - 3" (76mm) long | ||
| X Axis Travel (extended): | 4" (101mm) | ||
| Y Axis Travel: | 2.5" (63mm) | ||
| Z Axis Travel: | 1.5" (38mm) | ||
| X-Y-Z Axis Position Resolution: | .001" (.01mm) inch mode only | ||
| Tailstock
bearing inside diameter: |
.393" (10 mm) | ||
| Tailstock
travel: |
3 1/4" | ||
| Maximum
distance between centers: |
6" (152mm) extra distance optional | ||
|
Power
requirements: |
120
VAC 1 Ph
50/60 Hz 720 VA |
||
| Spindle Brake: | DC Electromagnetic (Programmable) | ||
| Tailstock: | Hand operated w/safety interlock | ||
| Guard System: | Hand operated w/safety interlock | ||
| Weight: | Approx. 80# (36 Kg) | ||
| Dimensions: | D-19" (482) W-16" (406) H-19" (482) | ||
| CONTROL | |||
| Model MCS2 | |||
| Control
Type: |
Embedded
- Freescale 32 bit Processors |
||
| Display: |
4
line x 40 Character Backlit LCD |
||
| Input
Keypad: |
24
Key (1/2" Rubber Tactile Touch) |
||
| Program
Storage: |
7000 lines / Complex and 99 Presets / Simple | ||
| I/O
Points: |
3
in / 3 out (24 VDC) |
||
| Operation
System: |
Microsoft
Windows 95/ 98 / NT/ME/2000 GUI |
||
| Programming
Software: |
MCSCOM
Graphical User Interface |
||
| Interface: |
RS232
for PC Interface |
||
| Network: |
Optional
USB |
||
|
OPTIONS |
|||
| Foot Pedal Control: | Variable
Speed w/On-Off Switch |
||
| Wire Guide Assembly: | Eyelet, Pulley or Optional "Electro Guide" | ||
| Dereeler
Ports: |
1
to 4 for Hysteresis Brake w/Tension Switch |
||
| Additional
I/O Points: |
8
in / 8 out (24 VDC) |
||
| Wire
Tensioning: |
Friction
or Programmable Hysteresis Brake |
||
