Model 303

Heavy Duty Multi Axis Coil Winder

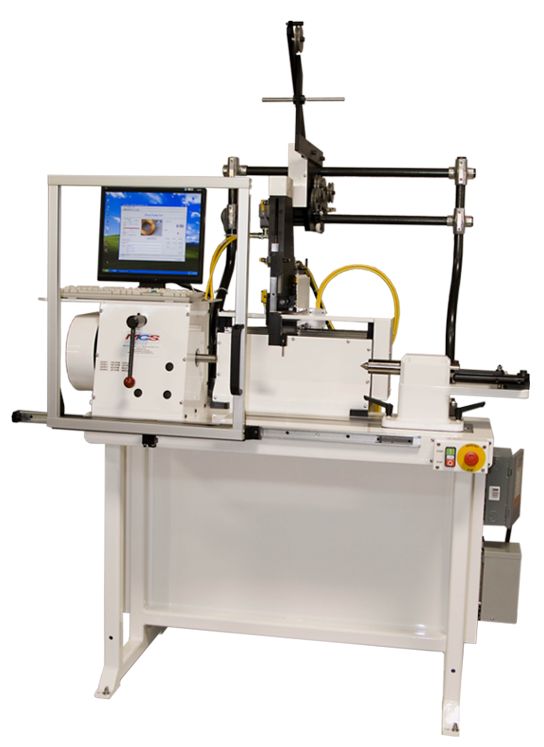

Machine above shown with heavy duty payoff tensioner

Specifications

MACHINE

Model 303

Wire size:

40 to 10 AWG

Max. Coil diameter:

9½ inches / 241 mm

Spindle height:

6 5/8 inches / 168 mm

Output shaft diameter:

1” shaft with ¼" keyway

Spindle drive:

36 lb/in, 3800 RPM, 1.9 HP, Brushless Servomotor

Primary ratio (belt & pulley):

2:1

Spindle speeds:

Gear

RPM

Ratio

Torque



1

1900

1.000:1

72 lb/in, 6 lb/ft



2

1041

1.824:1

132 lb/in, 11 lb/ft



3

625

3.039:1

220 lb/in, 18 lb/ft



4

347

5.470:1

397 lb/in, 33 lb/ft





Traverse drive:

35 oz/in, 7500 RPM Brushless Servomotor

Tailstock quill diameter:

1¼"

Tailstock quill travel:

4" (extra travel optional)

Tailstock quill tooling:

60 degree live center

Max distance between centers:

20" (extra distance optional)

Standard traverse distance:

12" with single wire guide (extra travel optional)

Power requirements:

240 VAC  3 Ph  50/60 Hz  1.5 KVA

Dimensions:

H-23" x W-47" x D-20" 500 LBS





CONTROL

Model MCS6

Control Type:

PC Based - with MCS6 Motion Control & Intelligent I/O

Display:

19" Color LCD video monitor - Touch Screen (optional)

Input:

Standard PC Keyboard, Mouse or Track ball

Program Storage:

250 GB Hard Disk (minimum)

I/O Points:

16 in / 16 out (24 VDC)

Operation System:

Microsoft Windows 7

Programming Software:

MCS CoilPro

Network:

Included Ethernet





OPTIONS

Foot Pedal Control:

Variable Speed w/On-Off Switch

Wire Guide Assembly:

Eyelet, Pulley or Optional “Electro Guide”

Dereeler Ports:

1 to 8 for Hysteresis Brake w/Tension Switch

Additional I/O Points:

8 in / 8 out (24 VDC)

Wire Tensioning:

Friction or Programmable Hysteresis Brake








Machine Control Specialists, Inc.
35 N Garden Avenue
Roselle, IL 60172-1742
Voice: 630-980-3200   Fax: 630-980-3249
Web: www.mcsinc.com Email: info@mcsinc.com

Last Update: July 19, 2017
