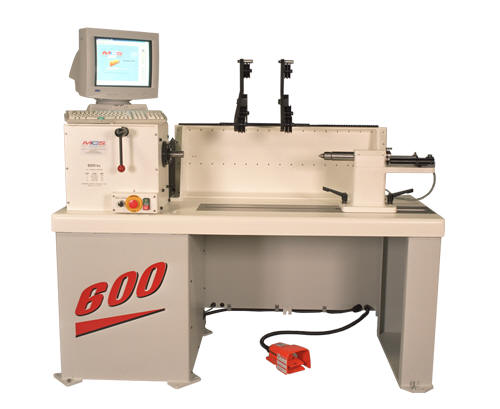

Model 600TXG

Heavy Duty Coil Winder

Machine Specifications

MACHINE

MODEL 600TXG

Wire size:

Fine to 4 AWG

Max. Coil diameter:

19 inches / 495 mm

Spindle height:

10 inches / 254 mm

Output shaft diameter:

1 ” shaft with " keyway

Spindle drive:

90 lb/in, 2200 RPM, 3 HP, Brushless Servomotor

Primary ratio (belt & pulley):

3.75:1

Spindle speeds:

Gear

RPM

Ratio

Torque



1

586

1.000:1

337 lb/in, 28 lb/ft



2

321

1.824:1

615 lb/in, 51 lb/ft



3

193

3.039:1

1026 lb/in, 85 lb/ft



4

107

5.470:1

1846 lb/in, 154 lb/ft

Traverse drive:

35 oz/in, 7500 RPM Brushless Servomotor

Tailstock quill diameter:

1 ”

Tailstock quill travel:

4" (extra travel optional)

Tailstock quill tooling:

60 degree live center

Max distance between centers:

34” (extra distance optional)

Standard traverse distance:

24" with single wire guide (extra travel optional)

Power requirements:

240 VAC  3 Ph  50/60 Hz  1.5 KVA

Dimensions:

H-60" x W-70" x D-40" 1500 LBS

CONTROL

Control Option 1:

MCS2 - Embedded - Freescale 32 bit Processors

Display:

4 line x 40 Character Backlit LCD

Input Keypad:

24 Key (1/2" Rubber Tactile Touch)

Program Storage:

3500 lines / Complex and 10 Presets / Simple

I/O Points:

8 in / 8 out (24 VDC)

Operation System:

Microsoft Windows

Programming Software:

MCSCOM Windows XP/7/10 GUI

Interface:

RS232 for PC Interface

Network:

Optional USB



Control Option 2:

MCS6 - PC Based - w/MCS6 Motion Control Board & Intelligent I/O

Display:

19" Color LCD video monitor - Touch Screen (optional)

Input:

Standard PC Keyboard, Mouse or Track ball

Program Storage:

Minimum 250GB hard disk drive

I/O Points:

16 in / 16 out (24 VDC)

Operation System:

Microsoft Windows 7

Programming Software:

MCS CoilPro with Multi-Media capability

Network:

Included Ethernet



OPTIONS

Foot Pedal Control:

Variable Speed w/On-Off Switch

Wire Guide Assembly:

Eyelet, Pulley or Optional “Electro Guide”

Dereeler Ports:

1 to 8 for Hysteresis Brake w/Tension Switch

Additional I/O Points:

8 in / 8 out (24 VDC)

Wire Tensioning:

Friction or Programmable Hysteresis Brake
