MACHINE

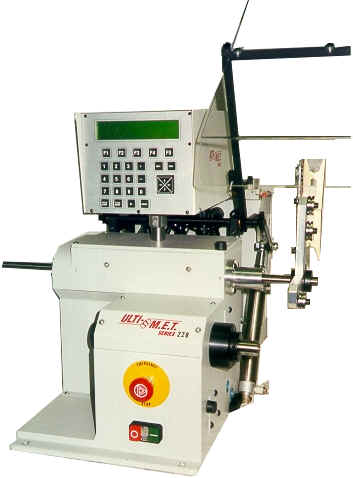

Model 220

Wire size:

40 to 12 AWG

Max. Coil diameter:

5 3/4"

Output shaft diameter:

5/8"

Max Traverse Distance:

5"

Max distance between centers:

7"

Motor Eqiupment:

1 HP, DC Permanent Magnet

Spindle drive:

Servo

Traverse drive:

Servo

Tailstock Way diameter:

1/2”

Tailstock Travel:

5"

Tailstock Quill Tooling:

N/A

Guard Operation:

Air

Line Power (230 VAC 60 HZ):

1 Phase, 50/60HZ, 15 amps

CONTROL

Model MCS2

Control Type:

Embedded - Freescale 32 bit Processors

Display:

4 line x 40 Character Backlit LCD

Input Keypad:

24 Key (1/2" Rubber Tactile Touch)

Program Storage:

3500 lines / Complex and 10 Presets / Simple

I/O Points:

8 in / 8 out (24 VDC)

Programming Software:

MCSCOM Windows XP/7/10 GUI

Interface:

RS232 for PC Interface

Network:

Optional USB

OPTIONS

Foot Pedal Control:

Variable Speed w/On-Off Switch

Wire Guide Assembly:

Eyelet, Pulley or Optional “Electro Guide”

Dereeler Ports:

1 to 8 for Hysteresis Brake w/Tension Switch

Additional I/O Points:

8 in / 8 out (24 VDC)

Wire Tensioning:

Friction or Programmable Hysteresis Brake
