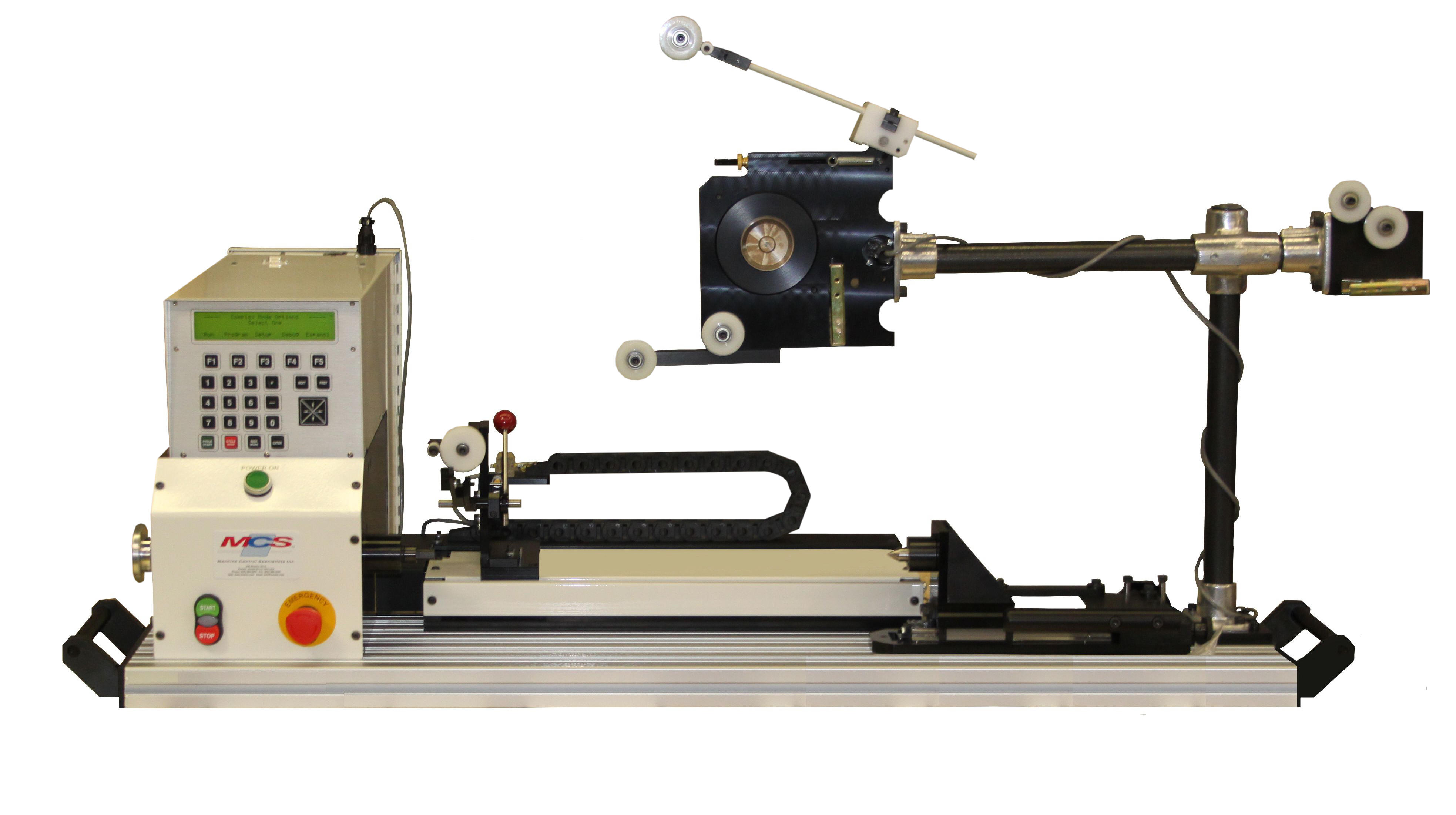

Model 100TX Coil Winder
|
Specifications |
|||||
|
Machine |
|||||
|
Model: |
100TXM | 100TXS | 100TXHD | ||
|
Max
Wire Size: |
18 Ga |
12 Ga | 14 Ga | ||
|
Max
Coil Diameter: |
5" | 5" | 5" | ||
| Output Shaft Diameter: | 1/2" | 1/2" | 3/4" | ||
| Max
Traverse Distance: |
12 3/4" | 12 3/4" | 12 3/4" | ||
| Max
Arbor Weigh w/ Coil: |
3 Lbs | 3 Lbs | 15 Lbs | ||
| Min.
Distance Between Centers: |
8" | 8" | 8" | ||
| Max.
Distance Between Centers: |
18" | 18" | 18" | ||
| Motor
Equipment: |
1/2 HP DC | .72HP Brushless | .72HP Brushless | ||
| Motor
RPM: |
3500 | 5000 | 5000 | ||
| Spindle
Pulley Ratios: |
1:2, 1:1, 2:1, 3:1, 4:1 |
||||
| Spindle
Drive: |
Brushed Servo | Brushless Servo | Brushless Servo | ||
| Max
Spindle Speed: |
15000 RPM | 15000 RPM | 5000 RPM | ||
| Traverse
Drive: |
Microstepper | Brushless Servo | Brushless Servo | ||
| Tailstock
Quill Diameter: |
5/8" | 5/8" | 1" | ||
| Tailstock
Quill Travel: |
1" | 1" | 1" | ||
| Tailstock
Quill Tooling: |
60 degree | 60 degree | 60 degree | ||
| Guard
Operation: |
Manual | Manual | Manual | ||
| Line
Power (115 VAC 50/60 HZ): |
8 AMPS | 8 AMPS | 8 AMPS | ||
| Dimensions: |
40" x 19" x 17" | 40" x 19" x 17" | 40" x 19" x 17" | ||
|
|
|
||||
|
|
|||||
|
Control Model MCS2 |
|||||
|
Control
Type: |
Embedded
- Freescale 32 bit Processors |
||||
|
Display: |
4
line x 40 Character Backlit LCD |
||||
|
Input
Keypad: |
24
Key (1/2" Rubber Tactile Touch) |
||||
|
Program
Storage: |
3500
lines / Complex and 10 Presets / Simple |
||||
|
I/O
Points: |
8
in / 8 out (24 VDC) |
||||
|
Programming
Software: |
MCSCOM for Windows XP/7/8 GUI |
||||
|
Interface: |
RS232
for PC Interface |
||||
|
Network: |
Optional
USB |
||||
|
|
|
||||
|
OPTIONS |
|||||
|
Foot
Pedal Control: |
Variable
Speed w/On-Off Switch |
||||
|
Wire
Guide Assembly: |
Eyelet,
Pulley or Optional “Electro Guide” |
||||
|
Dereeler
Ports: |
1
to 8 for Hysteresis Brake w/Tension Switch |
||||
|
Additional
I/O Points: |
8
in / 8 out (24 VDC) |
||||
|
Wire
Tensioning: |
Friction
or Programmable Hysteresis Brake |
||||
|
|
|
||||
