MACHINE

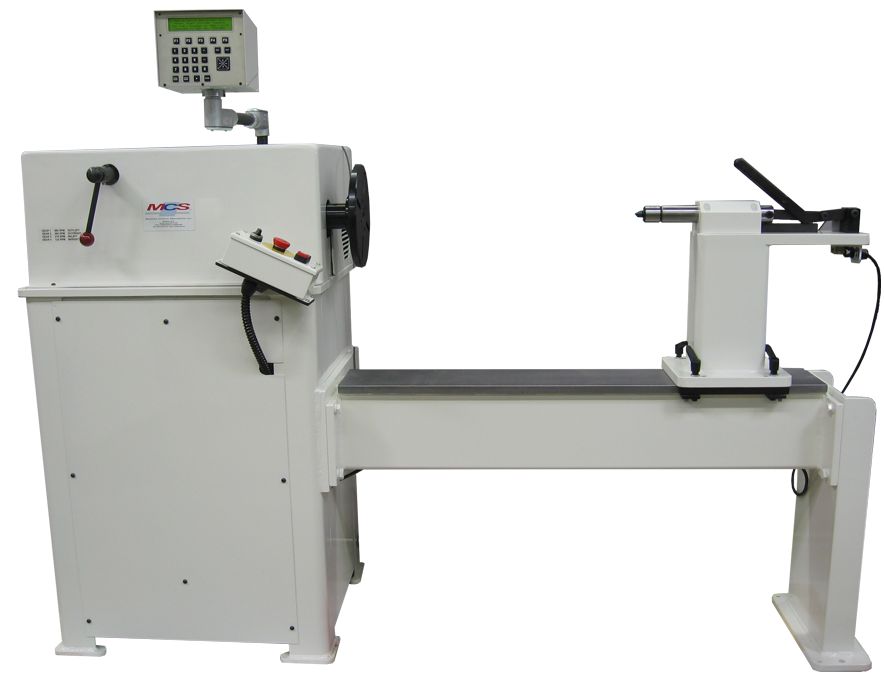

Model 400TG

Wire size:

FINE wire up to 2 Ga

Max. Coil diameter:

varies due to wire size

Spindle height:

44"

Output shaft diameter:

1 1/2"

Motor Equipment:

1 1/2 HP Brushless Servomotor

Spindle speeds:

Gear

Max RPM

Ratio

Torque

1

583

1.000:1

13 ft/lbs

2

320

1.824:1

24 ft/lbs

3

192

3.039:1

39 ft/lbs

Optional Equipment:

Toggle Lock Tailstock with Base:

 Quill Diameter:

1 3/4"

Quill Travel:

5"

 Quill Tooling:

60 degree live center

Long Ways:

Dimensions:

Line Power (230 VAC 60 HZ):

1 Phase, 60 HZ, 15 amps

CONTROL

Model MCS2

Control Type:

Embedded - Motorola 32 bit Processors

Display:

4 line x 40 Character Backlit LCD

Input Keypad:

24 Key (1/2" Rubber Tactile Touch)

Program Storage:

3500 lines / Complex and 10 Presets / Simple

I/O Points:

8 in / 8 out (24 VDC)

Programming Software:

MCSCOM Windows XP/7/10 GUI

Interface:

RS232 for PC Interface

Network:

Optional USB

OPTIONS

Foot Pedal Control:

Variable Speed w/On-Off Switch

Wire Guide Assembly:

Eyelet, Pulley or Optional “Electro Guide”

Dereeler Ports:

1 to 8 for Hysteresis Brake w/Tension Switch

Additional I/O Points:

8 in / 8 out (24 VDC)

Wire Tensioning:

Friction or Programmable Hysteresis Brake
